Advance NDT
We can provide a full range of services in the field of advanced
NDT through our global network. All our operators are qualified and certified
and can perform inspections to any international code, standard or customer
specification.
|
|
|
|
|
LONG RANGE UT/GUIDED WAVE
____________________________________ |
|
Spectra Solutions
provides Long Range Ultrasonic Testing (LRUT), also
known as guided wave ultrasonic testing, which is one of latest advanced
technology in the field of non-destructive evaluation. The method employs mechanical stress
waves that propagate along an elongated structure while guided by its boundaries
to inspect tens of meters of pipe from a single remote location.
The LRUT
Main application is for rapid screening of long lengths
of pipe to detect external or internal corrosion as well as axial and
circumferential cracking. The system can be used to access tubular and piping
systems such as insulated pipes in refineries and platforms, offshore pipeline
risers and caissons, above ground or buried flow lines and many more.
|
The benefits of long range ultrasonic testing include:
• Screening long lengths of pipe at one time
• Inspection of 100% of the pipe
• Detection of corrosion and erosion under insulation of
pipes
• Analysis of pipes at difficult-access locations, such
as wall penetrations, road crossings and buried sites
• Screening of on- and off-shore pipe work, even in
tightly packed racks
• Riser inspection
|
|
|
|

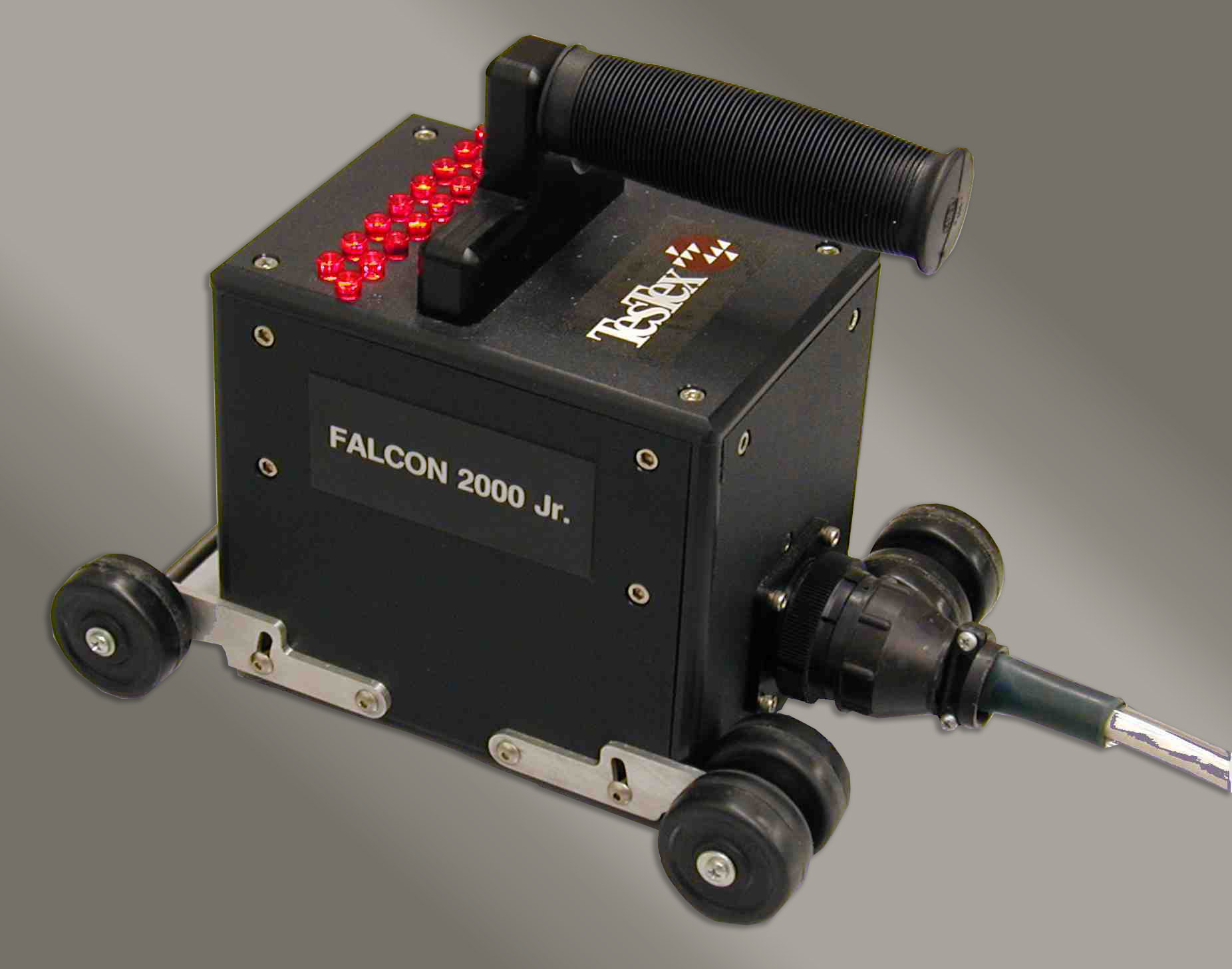

LFET inspection system
_____________________________________
Spectra Solutions provides Low Frequency Electromagnetic Technique ( LFET) techniques for detection of microbiological induced corrosion (MIC) Attack, flow accelerated corrosion (FAC), cracking, erosion, corrosion, and pitting wall losses.
LFET scanners can be used in settings where competing technologies fail or are inconvenient,
LFET has many NDT applications, including:
•Waterwalls
•Reheaters and superheaters
•Storage tanks
•Pipelines
•Service water pipes
•Fire protection pipes
•Coal mill pipes
•General pipes
•Pressure vessels
•Heat exchanger shells
|
|
|
|

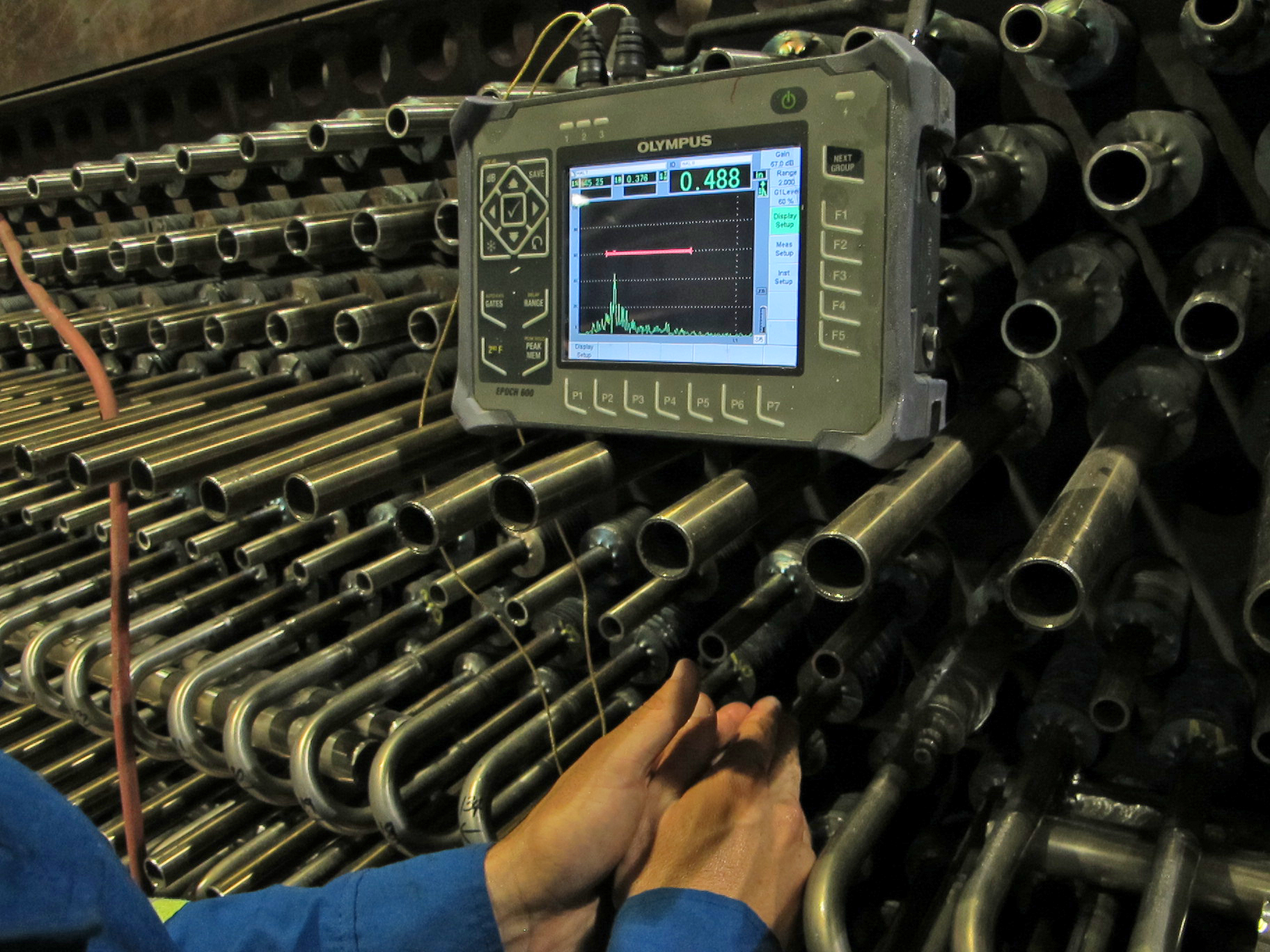

TUBULAR INSPECTION
____________________________________________
Spectra Solutions provide
the following latest advanced tubular inspection technology.
Depending on the material to be examined, ferrous or non ferrous, the specific
discontinuities we are looking for, or any other specific need of our clients,
we can provide inspection with one of the following technology :
• REMOTE FIELD TESTING (RFET)
• EDDY CURRENT TESTING (ECT)
• MAGAWAVE Testing
• NEAR FIELD TESTING (NFL)
• MAGNETIC FLUX LEAKAGE TESTING (MFL)
• INTERNAL ROTARY INSPECTION TESTING (IRIS)
top
|

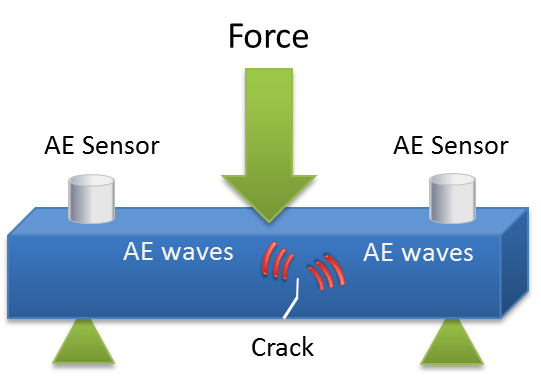

ACOUSTIC EMISSION TESTING
____________________________________________________
Spectra Solutions
provides Acoustic Emission Testing to inspect Storage Tanks, Spheres, etc.
Acoustic Emission (AE) tank inspection services are undertaken while the tank
remains in service
Advantages
:
• detection
of fatigue cracks in tank shell plate and welds.
• Leaks
are detected early,
• Simultaneous
floor and annular ring inspection
• Minimal
pre-inspection tank preparation
top
|
|
TIME OF FLIGHT DIFFRACTION (TOFD)
_____________________________________________
Spectra Solutions
provides TOFD to inspect the welds of process vessels and piping with
thickness more than 8mm.
TOFD is reliable and faster, and is an advancement to ultrasonic testing
which can used in lieu of Radiograph
Advantages :
• The inspection can be performed above
200° C.
•
The evacuation of areas because of
radiation is not necessary.
•
Higher Probability of Detection
improves risk reduction and
calculation.
•
TOFD saves costs, if applied during
construction,
Applications
•
In-service defect monitoring.
•
Defect detection, documentation and evaluation during the
production.
|
PHASED ARRAY ULTRASONIC TESTING
____________________________________________
Spectra Solutions
provides Phased Array Ultrasonic Testing to inspect welds of process equipment
and piping. Phased array (PA) is widely used in several sectors, from power
generation to construction industries. It is an advanced non-destructive testing
(NDT) method that uses an ultrasonic technique to determine component quality
and detect failure such as flaws or cracks.
Advantages
:
•
Simplified inspection of components that have complex geometry.
•
Inspection of many different materials
possible.
•
High temperature inspections
possible up to over 350°C.
•
Speedy inspection compared to
conventional ultrasonic testing.
Applications
•
Everywhere, where conventional
ultrasonic testing has been used.
•
Weld inspection
•
Crack and flaw detection
•
Thickness measurements
•
Corrosion inspections
|
|
|

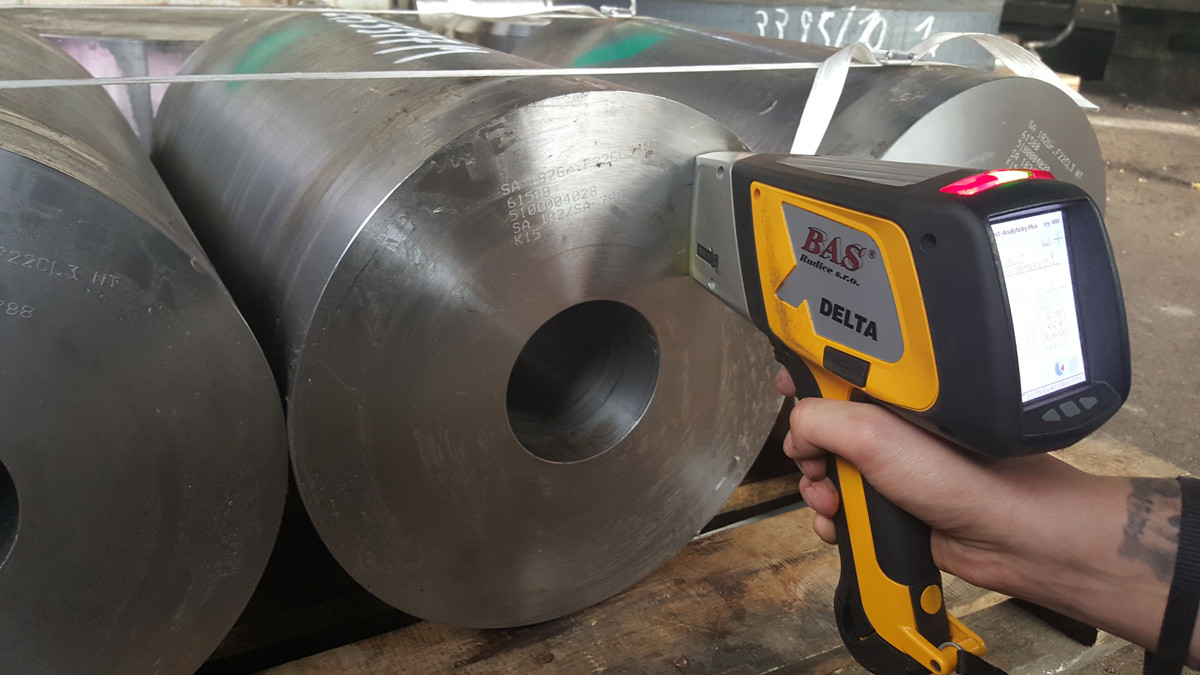

POSITIVE MATERIAL IDENTIFICATION
____________________________________________
Spectra Solutions
provides positive Material identification (PMI) services to identify or sort
deferent types of materials to be used in construction projects.
With Positive Material Identification the alloy composition of materials can be
determined. PMI is particularly used for high-quality metals like stainless
steel and high alloy metals. While engineers push the boundaries of material
capacities to their limits in the design, assurance, that the proper material is
used, becomes even more important.
Advantages
:
•
Allows lost material traceability
•
Saves time by providing accurate alloy sorting, identification
and verification
|
